Introduction
As the technological driving force of many developments in other areas, the Aerospace Industry is a technological sector where INOVOAL has found its place as a provider of high added value solutions.
The major goals of aerospace activities are the improvement of the population’s quality of life and the conservation and improvement of the environment, as well as the provision of information to contribute to efficient government administration. This implies a huge challenge for developments at the cutting edge of technology. That is the reason why at INOVOAL we focus on actively participating in the main areas of concern within this sector.
02
Solutions
We specialize in providing global solutions for aerospace investigation and development centers, covering all aspects of installations for environmental trials.
INOVOAL specializes in design, manufacture, set up and start up the equipment that reproduces the real conditions that satellites and space equipment must face, allowing fast, reliable and repeatable trials.
SUB-SYSTEMS
04
Cryogenic Pipelines
Transportation of cryogenic fluids requires special pipework, manufactured and tested for such ends. We manufacture them in Stainless Steel, with Stainless Steel, covered by super insulating material and wrapped with a sleeve where the vacuum is generated. They transport the fluid maintaining the required functioning pressure without generating superficial condensations.
03
Control Systems
At INOVOAL we develop complete control systems which allow our clients to have manual control of all the components as well as to work with complete automation, ensuring, in both cases, safe, flexible and efficient execution. The interfaces of each system are designed in a friendly manner following all the requirements of our clients. As for data acquisition, protection, backup and treatment, examples of the capabilities of our systems are parameters control, trials cycles programming, components automation and activities programming.
02
Vacuum Systems
Pursuant to the needs of our clients, the team of engineers specialized in vacuum systems choose the best method to guarantee the best performance. Depending on the size of the chamber, the required speed and the quality of the atmosphere, this system may combine mechanical and rotary pumps (Pre-Vacuum Stage) with Turbo-molecular and Cryogenic pumps (High Vacuum Stage), reaching Extreme High Level Vacuum levels of up to 10-7 mbar.
01
Thermal Systems
These systems are critical during the environmental trials of sensitive equipment in order to verify their behavior within the different thermal profiles to which they are subjected. They can be configured within all ranges of sizes and capacity of shrouds, scavenger plates, contamination plates and cold tables.
-
Liquid Nitrogen Circulation (-190 °C) (-310°F)
-
Radiant Heating (ceramics or lamps) (+200 °C) (392°F)
-
Gaseous Nitrogen Circulation (TCU) (-180°C (-292°F) to 150 °C (302°F)
03
Fabrication
Thermal Vacuum Chambers
These chambers are simulation equipment to reproduce outer space conditions.
-
Thermal Range: -190°C (-310°F) to +180°C (356°F)
-
Vacuum Level: Ultra High Vacuum up to 10-9 mbar
-
Wide range of sizes
Degasification Chambers
Vacuum degasification systems of liquids, plastics, resins and epoxy resins; also usable for drying parts or products.
Thermal Shock Chambers
Equipment used to generate very high temperature differences (from -75 (-103°F) to +180 °C (356°F) within a very short period.
01
SAOCOM satellite program

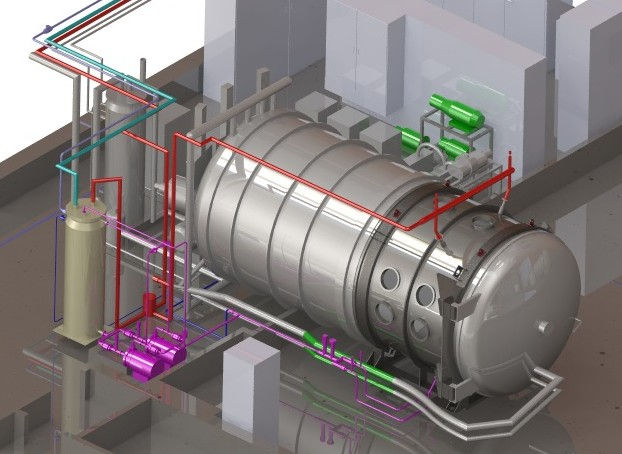

Basic and Detail engineering, Manufacturing and Project Management of the following systems for a new Thermal Vacuum chamber (Space Simulators): Mechanic Sub-System (Vessel design and verification); Thermal Sub-System (LN2 y Electric Resistance); Vacuum Sub-System; and LN2 piping (CONAE) (2014-2018)
02
SAOCOM satellite program
Basic and Detail engineering, Manufacturing and Project Management of the Mechanic Sub-System (Vessel design and verification), Thermal Sub-System (LN2 y Electric Resistance), Vacuum Sub-System, and LN2 piping for an extension of an existing Thermal Vacuum chamber (CONAE) (2014-2018)
03
Space Simulator
see the specifications in the desktop version
SPECIFICATION
Vessel Internal Dimensions
----------------------------------------------
Door Type
----------------------------------------------
Vessel Material
----------------------------------------------
Surface Finish
----------------------------------------------
Ultimate Pressure
----------------------------------------------
Temperature Range (on the Shroud)
----------------------------------------------
Temperature Change Rate (on the Shroud)
----------------------------------------------
Shroud and Platen control
----------------------------------------------
Shroud shape
----------------------------------------------
Shroud coating
----------------------------------------------
Platen characteristics
----------------------------------------------
Connections
INOVOAL IN-TVC-01
Øi 49” x 51” length
----------------------------------------------
Hinged door with a Viton O-ring
----------------------------------------------
AISI 304/304L
----------------------------------------------
Polished
(Electropolish or similar)
Emissivity ≤ 0.15
----------------------------------------------
3E-6 Torr
----------------------------------------------
-195 ⁰C to +150 ⁰C
----------------------------------------------
3 ⁰C/min
----------------------------------------------
Independent
----------------------------------------------
Horizontal Cylinder type. Back wall and door
----------------------------------------------
Black vacuum paint Emissivity ≥ 0.9
----------------------------------------------
-
Thermally isolated from chamber
-
Isolated from Chamber’s vibrations
-
Alodine coated
-
Capable to move out of the chamber
-
400 lbs Load
-
TBD
----------------------------------------------
Multiple penetrations from Conflat to ISO
Basic and Detail engineering, Manufacturing and Testing of a Thermal Vacuum Chamber (Space Simulator). The IN-TVC-01 is a thermal-vacuum chamber with the following characteristics:
