NUCLEAR
01
Nuclear
INOVOAL is formed by a multidisciplinary team of professionals with a long nuclear background in all different players in the industry such as designers, fabricators, operators and finally the regulator.
We are fully committed to design, development, planning, management, and fabrication of different types of components, structures, and highly complex systems.
FISSION
Traditional nuclear industry where a nucleus of certain elements, such as uranium or plutonium, split, releasing large amounts of energy. This energy is primarily harnessed in electricity generation through nuclear reactors, which convert the heat produced by fission into electrical power. It remains one of the key alternatives to fossil fuels in the search for cleaner and more sustainable energy sources.
FUSION
The energy of the future. Two light atomic nuclei, typically isotopes of hydrogen, combine to form a heavier nucleus, releasing a significant amount of energy. This reaction is the same process that powers the sun and stars. Achieving controlled nuclear fusion on Earth has the potential to provide a clean, virtually limitless source of energy, but it requires extremely high temperatures and pressures to overcome the natural repulsion between the positively charged nuclei.
02
Solutions
Engineering Services
Stress Analysis
01
Design and analysis of components and structures.
02
Fitness for service.
03
FEM Analysis.
Special services
01
Fractomechanics Analysis
-
Leak Before Break.
-
Crack propagation.
-
Fatigue crack growth.
-
Failure Assessment Diagrams, FAD.
-
Thermal Shock fractomechanic analysis – Pressurized Thermal Shock
02
Non-Linear Analysis
-
Thermal and Mechanic.
-
Elastoplastic collapse analysis.
-
Buckling and post-buckling analysis.
-
Impact.
03
Fluid Dynamics Analysis
-
CFD Modulization
-
Thermal stratification.
03
Seismic dynamic Analysis
-
Dynamic and seismic problem modeling.
-
Modal-spectral analysis
-
Time-history linear and non-linear.
-
Determination of design spectra and selection of real or artificial accelerograms
-
Fluid-structure interaction under seismic loads.
Fabrication
INOVOAL manufactures every nuclear component under the requirements of their Quality Assurance System according ASME Section III, NCA-3800 and NQA-1 requirements and under the control of his own Authorized Nuclear Inspector by the National Board of Boiler and Pressure Vessel Inspector.
Nuclear Industry Container Solutions:
We design and manufacture high-quality containers for the safe storage and transportation of radioactive materials, meeting industry’s most stringent standards.
Our product offer includes:
01
Spent Fuel Cask (Container for spent nuclear fuel).
02
Dry Storage Cask (Container for dry storage of radioactive materials).
03
Transport Cask (Container for radioactive material transportation)
04
Shielded Cask (Shielded container for radiation protection).
We also provide Build to Print solutions, manufacturing containers according to our clients’ specific designs and requirements.
All our products comply with the most rigorous international standards.
01

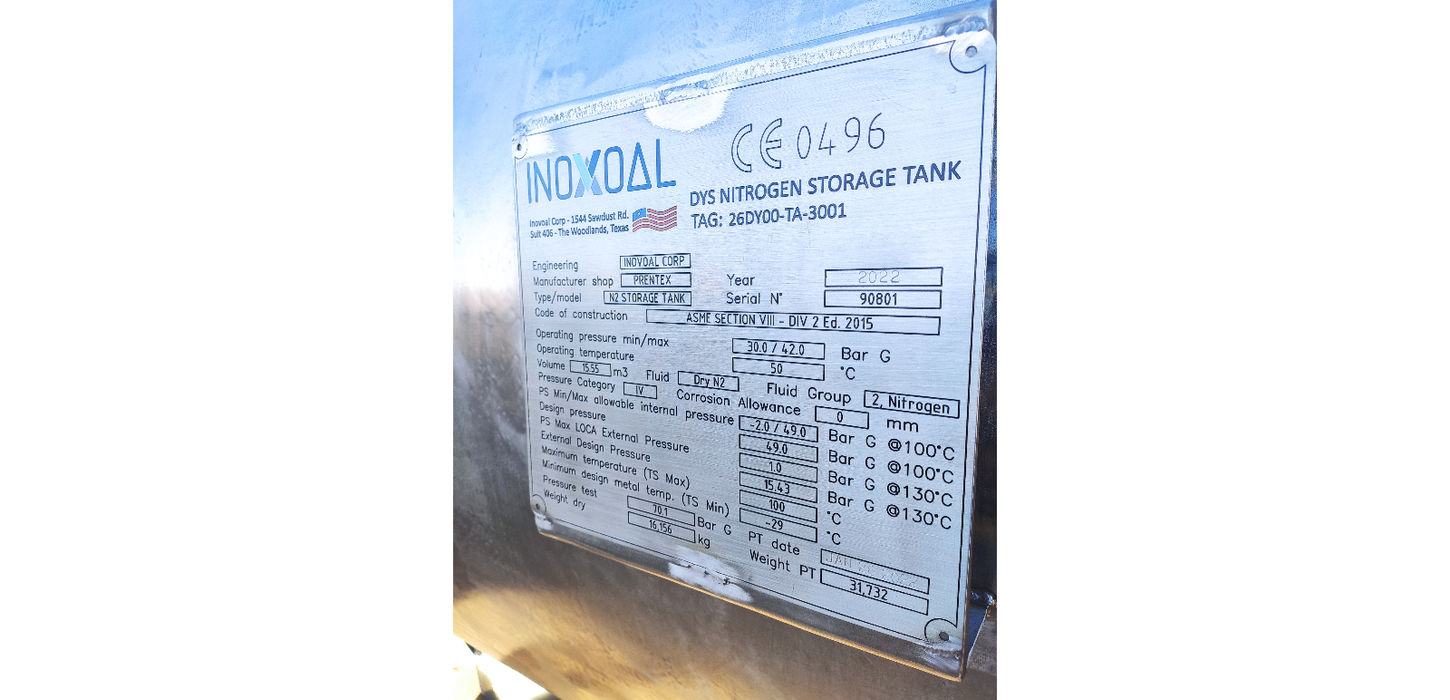

TCWS DYS Nitrogen Storage Tank
Detailed design, manufacture, inspection, testing, packaging, documentation, conformity assessment and delivery of the DYS Nitrogen Storage Tank for the Tokamak Cooling Water System (TCWS). The DYS Nitrogen Storage Tank is a SS 304/304L, 2” thickness and 20 TN vessel and is part of the Drying System (DYS) that provides removal of remaining water from the TCWS that cannot be gravity drained and provides gas baking of the diverter cassettes. (US ITER - UT Battelle, LLC c/o Oak Ridge National Laboratory) (2019)
02
VAS-02 Flange Fastener Kits
Manufacture, inspection, testing, packaging, documentation, conformity assessment and delivery of 896 (eight hundred and ninety-six) VAS-02 Flange Fasteners Kits in several sizes for the Vacuum Auxiliary Piping manifolds (US ITER - UT Battelle, LLC c/o Oak Ridge National Laboratory) (2021)
03
RPS Vacuum Piping and Pipe Supports
Design, development and qualification of the vacuum piping and related pipe supports for fifteen Vacuum Pumping sub-systems for the ITER projects. More than 10,000 engineering hours of specialist. (US ITER - UT Battelle, LLC c/o Oak Ridge National Laboratory) (2022)
04
VAS-02 Cryogenic Guard Vacuum System (CGVS) Frames
Manufacture, inspection, testing, packaging, documentation, conformity assessment and delivery of 66 (sixty-six) VAS-02 Cryogenic Guard Vacuum System (CGVS) Frames, including special Beam type and nuclear class painting. (US ITER - UT Battelle, LLC c/o Oak Ridge National Laboratory) (2022)
05
Test Canister & Vacuum Chamber
Design, manufacturing, testing, and delivery of a Test Canister & a Vacuum Chamber for Nuclear used fuel transportation. The assembly is a full-scale mockup for Spent Nuclear Fuel (SNF). The vacuum chamber simulates the sealable interior of a transportation cask that houses the SNF canister. The TC & VC will be used to conduct operational testing associated with identifying a leak in a canister upon receipt at an interim storage facility. (Battelle Memorial Institute c/o Pacific Northwest National Laboratory) (2023)
06
ASECQ – Part 1 & 2
Basic and Detailed engineering for the new Atucha I Nuclear Power Plant Spent Fuels Supporting Structure (“ASECQ”) (2017-2018). The job includes Structures and Mechanisms design and FEMEA analysis and verifications. (Nucleoeléctrica Argentina S.A.) (2019)
07
JDJ System Piston Tanks
Engineering, manufacturing and testing of 2 (two) piston tanks for the JDJ System, the latest security system of the Argentine nuclear power plant ATUCHA I. Fabricated in special Stainless-Steel alloy. (Nucleoeléctrica Argentina S.A.) (2018-2019)
08
Heat Exchangers
Manufacturing of 2 (two) Heat Exchangers for Atucha I Power Plant. (Nucleoeléctrica Argentina S.A.) (2014)
09
Cooling Water Filter System
Manufacturing, painting, testing and delivery 55 (Fifty five) Filter units for the Cooling Water Filter System of Atucha I Nuclear Power Plant (Nucleoeléctrica Argentina S.A.) (2019)
10
Cooling Water Filter System
Manufacturing, painting, testing and delivery 116 (One Hundred and sixteen) Filter units for the Cooling Water Filter System of Atucha II Nuclear Power Plant (Nucleoeléctrica Argentina S.A.) (2020)
